Behringer Behringer TM1 Complete Microphone Recording Package

TM1

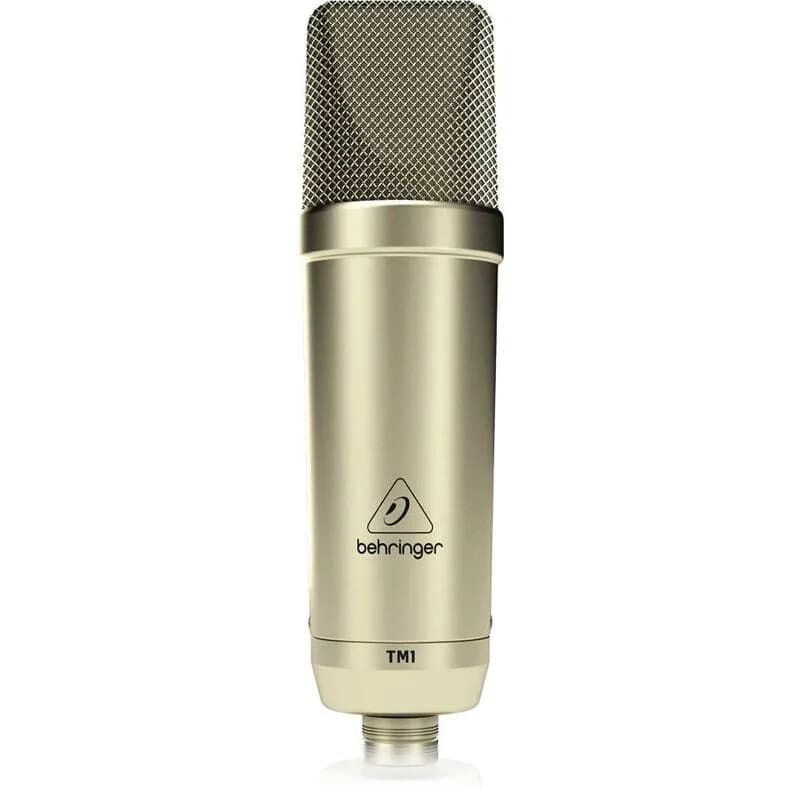

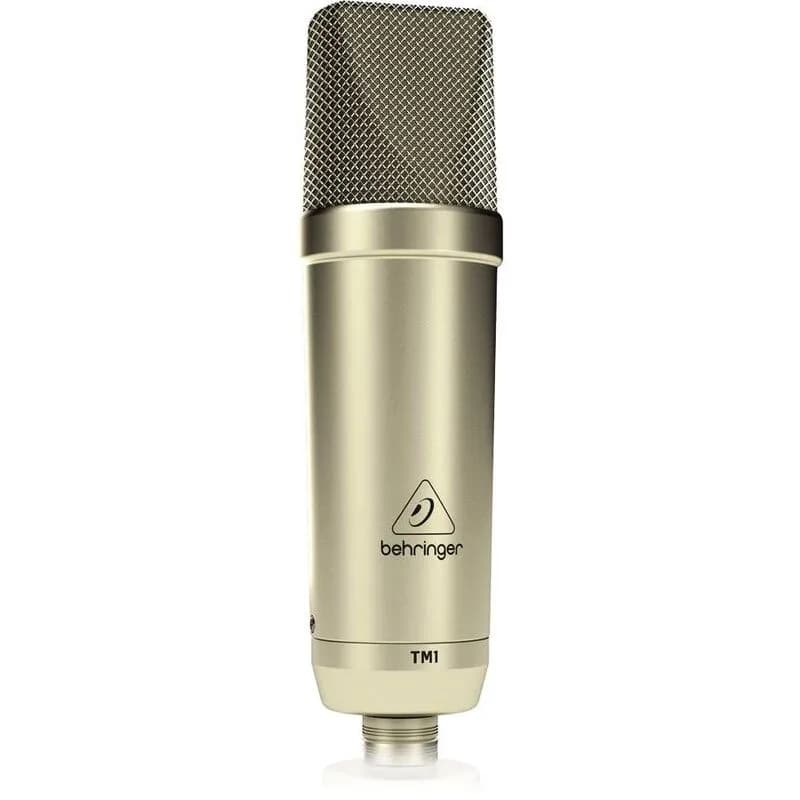

The large-diaphragm TM1 Condenser Microphone is designed to capture your sounds with incredible realism, sensitivity and accuracy. Featuring premium-grade electronic components and a pure gold-plated diaphragm capsule, the TM1 captures pristinely clear audio via its cardioid pickup pattern design and wide 132 dB dynamic range. This versatile microphone is well suited for a variety of applications ranging from recording studios to broadcast stations. Rounding out the package is a heavy duty shock mount with integrated pop shield, a dedicated dust cover, and a 20' (6 m) professional grade microphone cable.

Capsule

1" super-large gold-plated diaphragm

Acoustic principle

Pressure gradient

Directional pattern

Cardioid

Electronics

JFET preamplifier with bipolar output stage

Frequency range

20 Hz - 20 kHz

Sensitivity

-34 dB ± 2 dB @ 1 kHz (0 dB)

Equivalent noise

4.5 dBA SPL (per IEC 651)

Maximum input

138 dB @1 kHz (≤ 1% THD)

Dynamic range

>132 dB (per IEC 651)

Maximum SPL

138 dB @1 kHz (≤ 1% THD)

SNR

88.5 dB SPL @ 1 kHz, (relative to 1 Pa, per IEC 651)

Power requirement

+48 V phantom power

Output impedance

100 Ohms ±30% @ 1 kHz

Output connection

3 pin XLR, balanced output between Pin 2 (+), Pin 3 (-) and Pin 1 (ground)

Dimensions

54 x 189 mm (2.1 x 7.4")

Net weight

354 g (0.8 lbs)
